Measure the load before choosing its warning flags

A flatbed can have its cargo tied down and still need another departure decision: how will other road users recognize the edges of a load that projects beyond the vehicle? The useful starting point is a measurement, followed by a marking plan. This practical resource examines existing federal projecting-load flag requirements for covered commercial motor vehicles. It reports no new rule or incident. The loading-yard examples and suggested handoff below are editorial analysis, intended to help carriers organize a review alongside applicable state requirements and permit conditions.

Under section 393.87, a load extending more than four inches beyond the sides or more than four feet beyond the rear triggers warning flags at its extremities. The prescribed flags are red or orange fluorescent and at least eighteen inches square. Those are separate side and rear tests. Our suggested worksheet therefore records side projection and rear projection separately, rather than asking only whether the shipment is called oversized. A shipper’s commodity description does not tell the driver where the loaded cargo actually ends. Make the measurement on the loaded vehicle before selecting equipment.

The rear flag arrangement also depends on the projecting load’s width. For a projection two feet wide or less, the rule calls for one flag at the extreme rear; a projection wider than two feet needs two. Flags must show the maximum width of loads projecting beyond the sides and/or rear. A narrow bundle and a broad panel can therefore need different arrangements even if their rear overhang is identical. Measure the relevant projection instead of assigning every long shipment the same single flag. The threshold describes the load projection, not the width of the trailer deck.

Consider two hypothetical pickups with the same rear overhang of five feet: one carries a narrow bundle, the other a wide panel. The rear distance establishes that flags are needed, but the projection width determines which rear arrangement applies. A note saying only “five-foot overhang” leaves the next person missing an essential fact. Our recommended handoff includes the rear distance, projection width, side extensions and the points the proposed flags will mark. The purpose is to let the loader, driver and dispatch reviewer describe the same geometry before the truck moves.

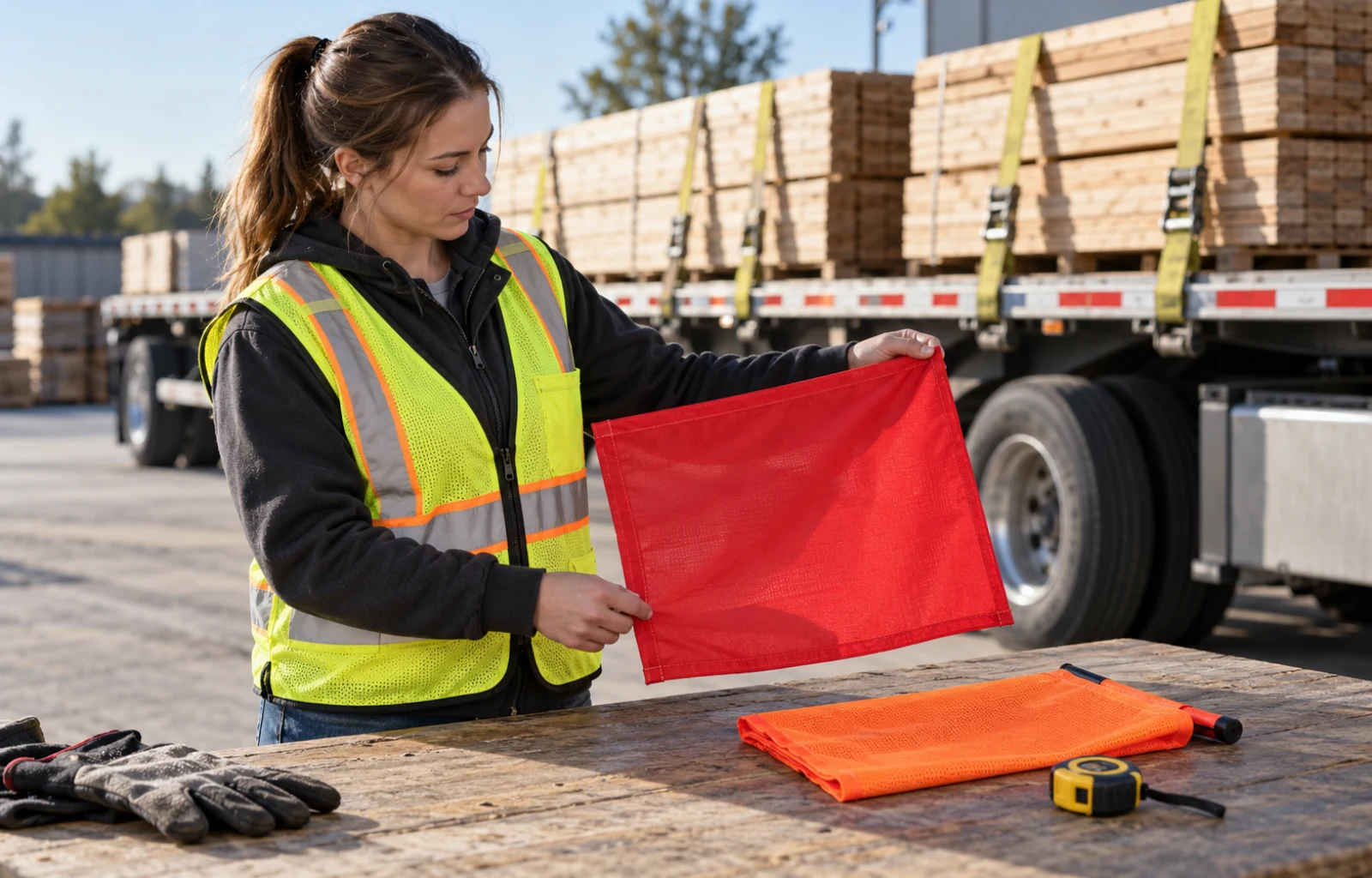

Equipment selection deserves its own check. FMCSA’s published interpretation says a triangular flag or device cannot serve by itself as the oversized-load marking; it may accompany the prescribed flag. A triangle already in the truck should therefore prompt a question about its intended job. Our recommendation is to inspect the actual flag kit at assignment: shape, dimensions, color, condition and a practical attachment method. A kit inventory that merely says “flags aboard” cannot establish whether the available pieces match the planned load. Keep spares accessible so a damaged or missing item can be addressed before departure.

Finally, keep load marking connected to the route review. FHWA explains that oversize and overweight permits are issued by states, rather than the federal government. Meeting the federal flag specification does not establish that a particular movement is authorized. Have the responsible reviewer check applicable jurisdiction and permit conditions, including any additional markings, escorts or travel restrictions. If the trip will reach hours when headlamps are required, review the separate projecting-load lighting requirements as well. A flag count alone cannot settle that equipment question. Our suggested release record names who checked the measurements, who checked the route conditions and what the driver should do if the load configuration changes.
